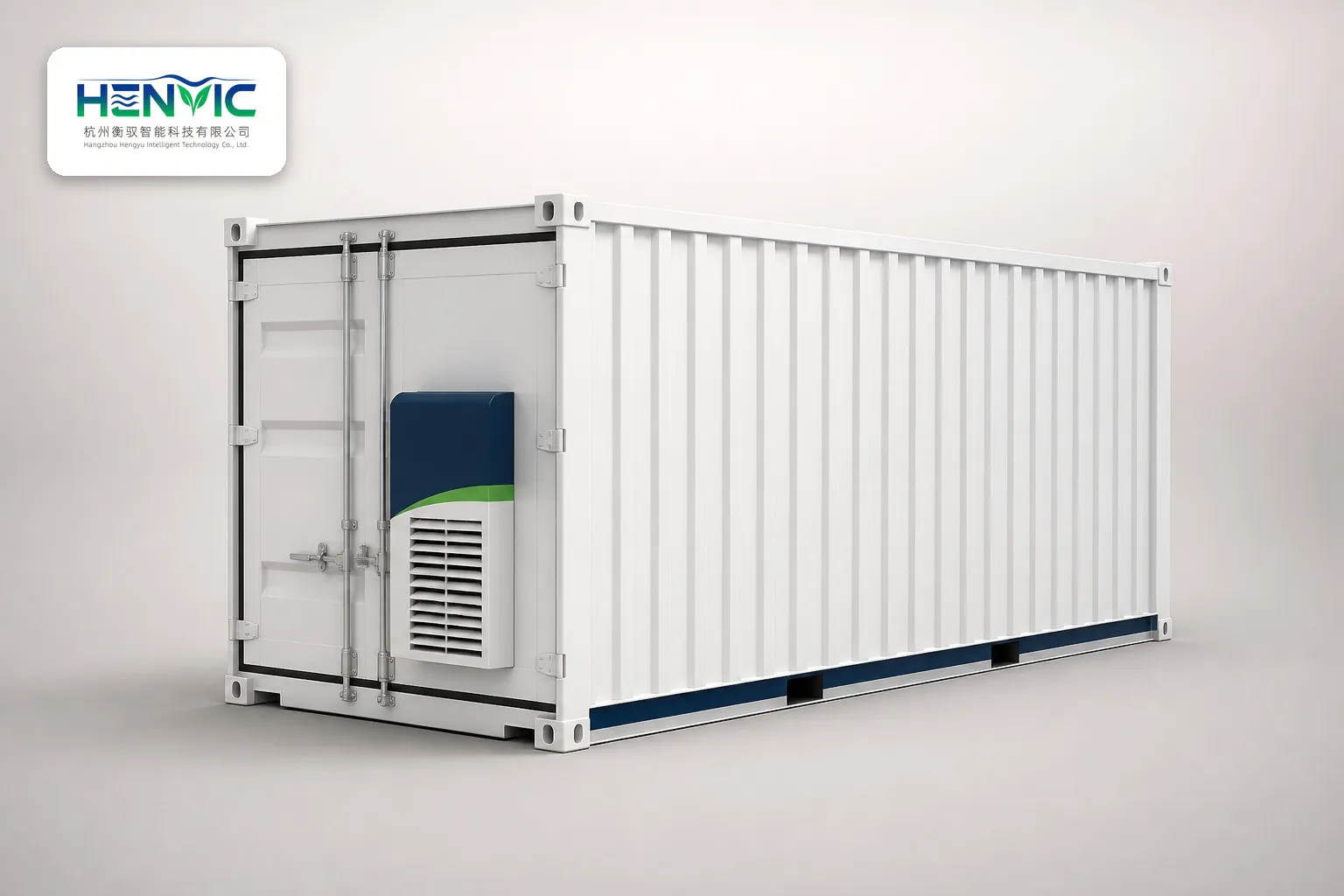

Morel Mushroom Cultivation Container Model：HVC-M1E
1. Product Overview
Morel cultivation is highly sensitive to temperature swings, humidity and light, which has long limited commercial yields. This model centres on a programmable cold-shock curve, condensation-free high-humidity air supply and a low-light recipe, turning primordia induction and fruiting into a repeatable, standardised process rather than a weather-dependent gamble.
2. Key Advantages
• Programmable day/night temperature curves that reproduce the cold-shock window required for primordia induction
• Anti-condensation interior surfaces that prevent water damage to fruiting bodies and suppress contaminants
• Multiple independent climate zones per container for staggered spawning and harvest windows
• Full local parameter logging with remote access, so every batch is traceable and repeatable
3. Technical Specifications
项目 / Item | 参数 / Specification |
型号 / Model | HVC-M1E |
外形尺寸 / Dimensions | 12000 × 2438 × 2896 mm（40 尺标准箱） / 12000 x 2438 x 2896 mm (40 ft ISO container) |
有效栽培面积 / Effective cultivation area | 50–65 m² / 50-65 m2 |
层架配置 / Rack configuration | 4–5 层不锈钢出菇架，配自动巡检接口 / 4-5 tier stainless racks with automatic inspection interface |
温度控制范围 / Temperature range | 8-18 ℃ (±0.5 ℃) / 8-18 degC (+/-0.5 degC) |
相对湿度 / Relative humidity | 85-95% RH |
CO₂ 浓度 / CO₂ concentration | 600-1200 ppm |
光照 / Lighting | 0-300 lux（可调 / adjustable） |
栽培周期 / Cultivation cycle | 60–90 天（含菌丝培养与出菇） / 60-90 days including colonisation and fruiting |
装机功率 / Installed power | 14–18 kW / 14-18 kW |
电源 / Power supply | 380 V / 50 Hz 三相（可按目的国电压定制） / 380 V / 50 Hz, 3-phase (customisable to destination-country voltage) |
箱体传热系数 / Enclosure U-value | ≤0.30 W/(m²·K) / <= 0.30 W/(m2.K) |
控制系统 / Control system | 全自动控制 + 云端数据平台 + AI 配方自学习 + 手机 APP / Fully automatic control with cloud data platform, self-learning AI recipes and a mobile app |
主栽品种 / Primary species | 羊肚菌（Morchella spp.） / Morel Mushroom (Morchella spp.) |
4. System Configuration
Standard configuration: Insulated enclosure, inverter heat-pump cooling and heating unit, ultrasonic fogging humidifier, casing-bed or substrate-bag racks, fresh-air and CO2 control, dimmable fruiting light bars, fertigation and drainage lines, and a PLC touch-panel control cabinet.
Enclosure and integration: 12000 x 2438 x 2896 mm (40 ft ISO container); racks: 4-5 tier stainless racks with automatic inspection interface; control: Fully automatic control with cloud data platform, self-learning AI recipes and a mobile app.
5. Suitable Species
Primary species: Morel Mushroom (Morchella spp.). Cultivation method: supplemented substrate bags with a soil casing layer. We recommend adding an external nutrient-bag workstation and a casing area for concentrated pre- and post-fruiting operations.
6. Application Scenarios
Industrial production of premium mushrooms, cooperative demonstration bases, university and research cultivation trials, and direct supply to high-end restaurants. This is the Smart Flagship configuration; Unattended operation with full parameter traceability; suits multi-site remote management.
7. Delivery & Installation
• Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 96-hour continuous operation test, with a test record supplied with the shipment.
• Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.
• On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 5 working days.
• Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.
8. After-Sales Service
• Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.
• Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.
• Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).
• Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.
• Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
