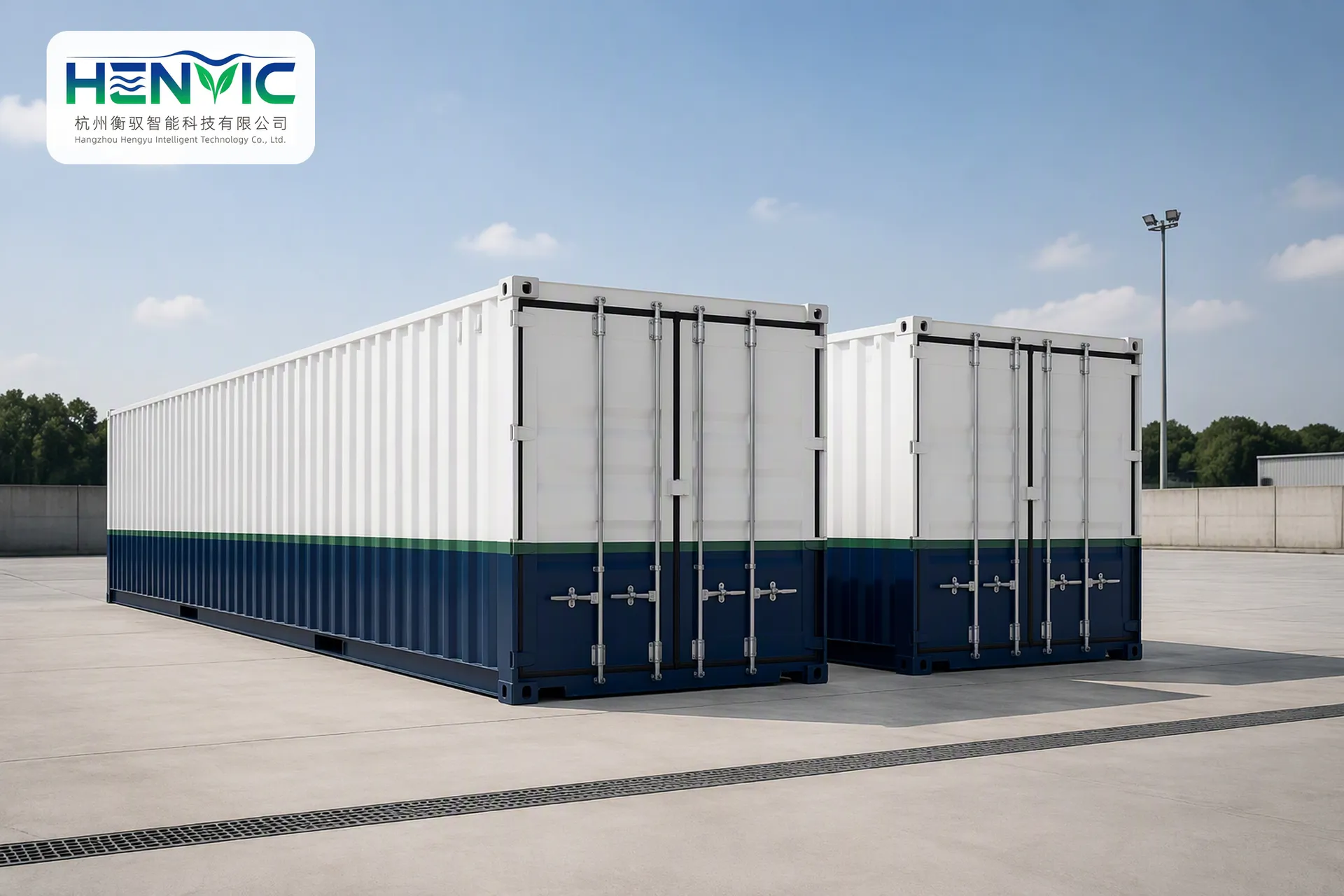

Ice Plant Cultivation Container Compact

1. Product Overview

The value of ice plant lies in the glistening salt bladders on its stems and leaves, and how full those bladders become depends directly on nutrient EC and light intensity. This model combines floating-raft culture with a high-EC recipe reaching 3.0 mS/cm and a high-light programme to maximise this signature trait.

2. Key Advantages

• Nutrient EC raised to 3.0 mS/cm to develop full, characteristic salt bladders

• Raft culture gives well-oxygenated suspended roots, open plants and more branching

• A high-light recipe for fuller bladders and brighter colour

• Supplied with an ice-plant specific nutrient and harvest-timing parameter pack

3. Technical Specifications

项目 / Item	参数 / Specification
型号 / Model	HVC-V5A
外形尺寸 / Dimensions	6058 × 2438 × 2896 mm（20 尺标准箱）  /  6058 x 2438 x 2896 mm (20 ft ISO container)
栽培层数 / Growing tiers	3 层  /  3 tiers
有效种植面积 / Effective growing area	30–45 m²  /  30-45 m2
栽培架配置 / Rack configuration	3 层铝型材水培架，层距可调  /  3-tier anodised aluminium hydroponic racks with adjustable pitch
栽培方式 / Growing method	浮板（漂浮筏）水培，高 EC 配方  /  floating-raft hydroponics with a high-EC recipe
温度控制范围 / Temperature range	18-25 ℃ (±1 ℃)  /  18-25 degC (+/-1 degC)
相对湿度 / Relative humidity	60-75% RH
光照强度 / Light intensity	250-400 μmol/(m²·s)  /  250-400 umol/m2/s
EC / pH	2-3 mS/cm  /  pH 5.8-6.5
生长周期 / Growth cycle	40–50 天  /  40-50 days
装机功率 / Installed power	7–10 kW  /  7-10 kW
电源 / Power supply	380 V / 50 Hz 三相（可按目的国电压定制）  /  380 V / 50 Hz, 3-phase (customisable to destination-country voltage)
箱体传热系数 / Enclosure U-value	≤0.40 W/(m²·K)  /  <= 0.40 W/(m2.K)
控制系统 / Control system	PLC + 7 寸触摸屏，本地控制，预留远程接口  /  PLC with 7-inch touch panel; local control with remote-ready interface
主栽品种 / Primary crop	冰菜（Mesembryanthemum crystallinum）  /  Ice Plant (Mesembryanthemum crystallinum)



4. System Configuration

Standard configuration: Raft growing troughs and planting boards, nutrient circulation and disinfection, high-EC automatic fertigation module, full-spectrum LED lighting, constant-temperature fresh-air and dehumidification unit, and an intelligent control cabinet with remote monitoring.

Enclosure and integration: 6058 x 2438 x 2896 mm (20 ft ISO container); racks: 3-tier anodised aluminium hydroponic racks with adjustable pitch; control: PLC with 7-inch touch panel; local control with remote-ready interface.

 5. Suitable Crops

Primary crop: Ice Plant (Mesembryanthemum crystallinum). Growing method: floating-raft hydroponics with a high-EC recipe. High-EC operation increases the salt load in drainage; plan for drainage treatment or recirculation.

 6. Application Scenarios

Specialty vegetable supply for premium restaurants, differentiated ranges in boutique supermarkets, and agritourism displays. This is the Compact configuration; Small footprint for near-market deployment; ideal for community supply and pilot production.

 7. Delivery & Installation

• Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 48-hour continuous operation test, with a test record supplied with the shipment.

• Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.

• On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 3 working days.

• Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.

 8. After-Sales Service

• Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.

• Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.

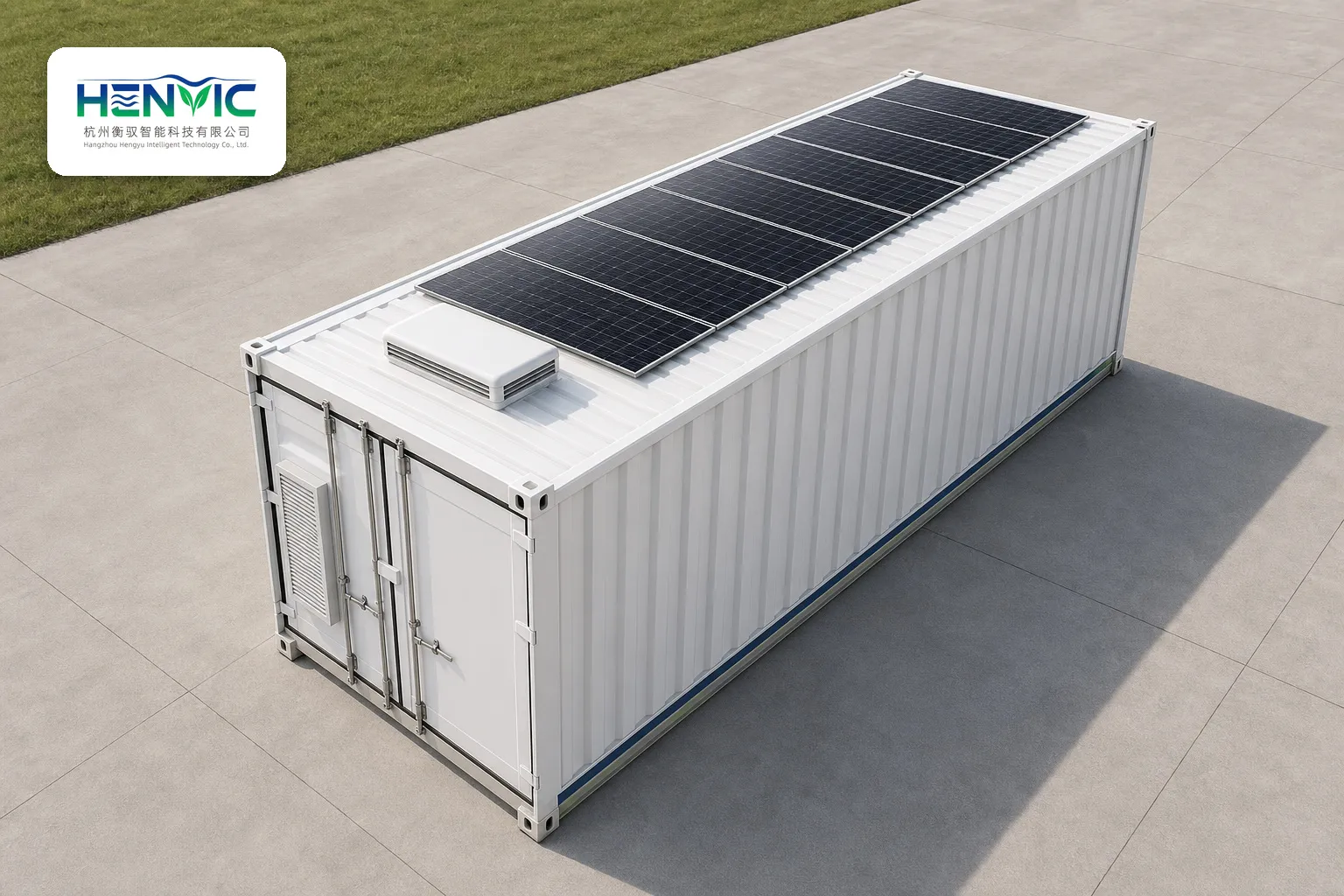

• Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).

• Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.

• Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
